IP54 Waterproof Microwave Doppler Radar Sensor with Adjustable Sensitivity and Wide Detection Field for Automatic Door Motion Detection

Tên thương hiệu:	JUTAI
Số mẫu:	RD24-4
MOQ:	100
giá bán:	4-6 USD according to order quantity
Chi tiết bao bì:	GIỎ HÀNG
Điều khoản thanh toán:	T/T, paypal, alipay, Western Union

Thông tin chi tiết

Mô tả sản phẩm

Thông tin chi tiết

Nguồn gốc:

THÂM QUYẾN TRUNG QUỐC

Chứng nhận:

Tài liệu:

Khả năng cung cấp:

5000 chiếc mỗi tháng

Làm nổi bật:

IP54 Waterproof Microwave Doppler Radar Sensor

Adjustable Sensitivity Automatic Door Motion Detector

Wide Detection Field 24.125GHz Radar Sensor

Mô tả sản phẩm

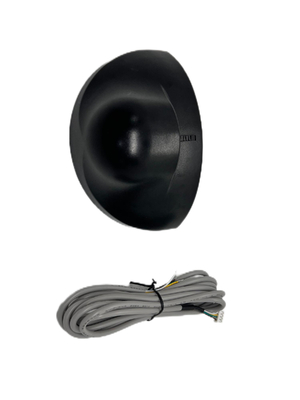

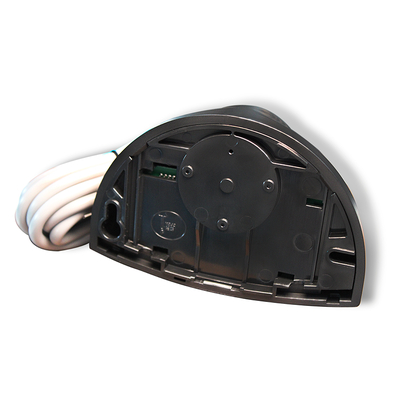

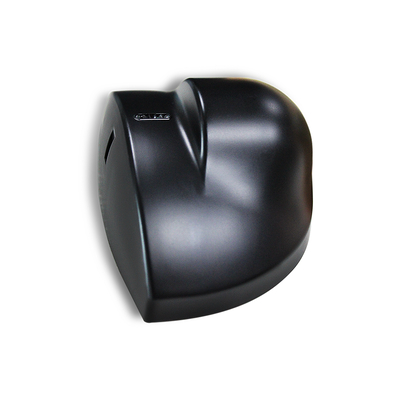

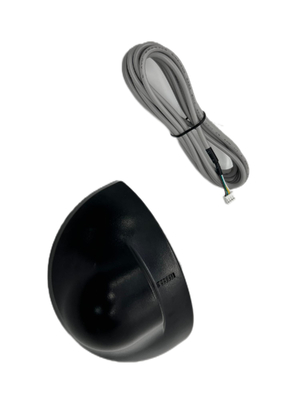

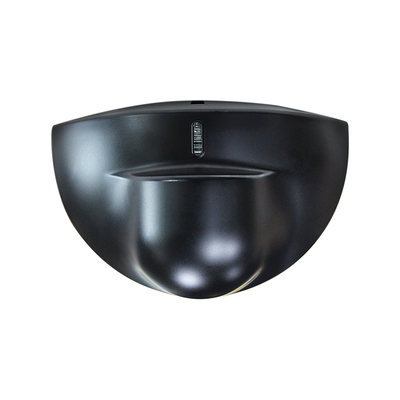

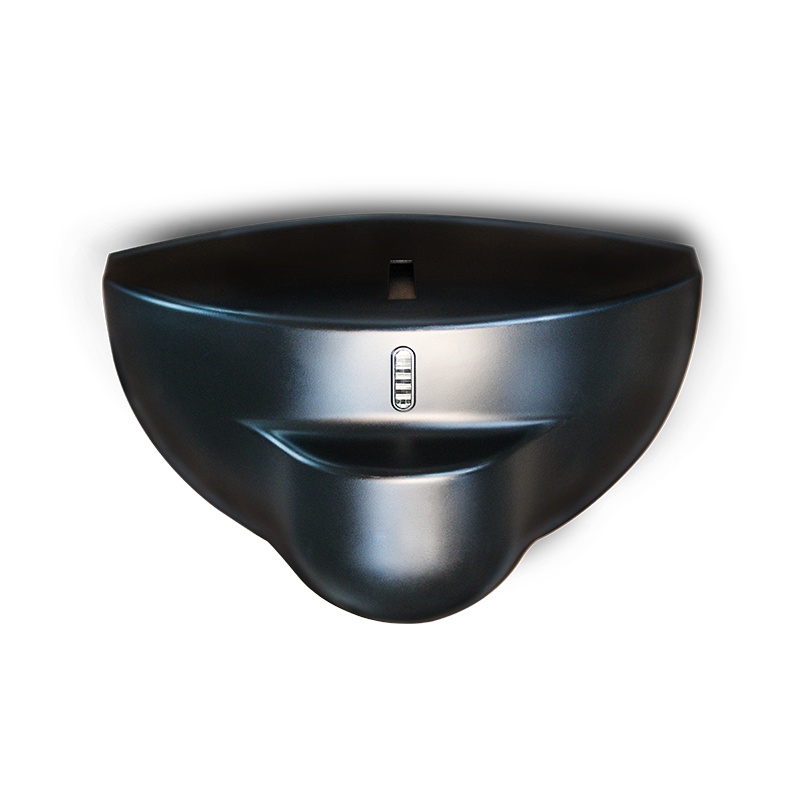

Automatic Door Sensor RD24-4S

High-performance microwave Doppler radar sensor with IP54 waterproof rating and adjustable sensitivity for professional motion detection applications.

Core Technologies: Microwave Doppler Radar Sensor, 24.125GHz Radar Sensor, Automatic Door Motion Detector, Wide Field Detection Sensor, IP54 Motion Sensor

Product Highlights

24.125GHz mainstream microwave frequency for stable motion detection (≥5cm/s)
Wide detection field: 4m(W)×2m(D) at 2.2m mounting height
Flexible angle adjustment: 0°~90° vertical / -30°~+30° lateral tilt
Wide voltage supply: 12-24V AC/DC with low power consumption (≤2W)
IP54 protection & -20℃~+55℃ working temperature for indoor/outdoor semi-enclosed use
Easy installation & adjustment with compact size, sensitivity potentiometer, and clear LED status prompt
Reliable output: 1.5s signal hold, 42V AC/DC max contact voltage, 1A resistive current

Product Overview

The RD24-4S is a high-performance microwave Doppler radar sensor designed for professional motion detection scenarios including automatic door induction, security monitoring, and industrial automation. Utilizing 24.125GHz microwave technology, it features a planar wide-field antenna for accurate capture of moving targets (minimum speed 5cm/s) without blind spots. Detection range, position and depth can be flexibly adjusted via tilt angle and sensitivity potentiometer.

With a compact ABS housing (black/silver), lightweight design (0.215kg) and 2.2m pre-wired cable, the sensor is easy to mount and wire (JST connector + relay COM/NO interface). It supports 12-24V AC/DC wide voltage supply, meets IP54 dust and water resistance standards, and operates reliably in temperatures from -20℃ to +55℃, making it suitable for various commercial and industrial environments. The built-in LED indicator provides intuitive working status feedback, and the product complies with R&TTE 1999/5/EC and EMC 89/336/EEC international standards.

Technical Specifications

Parameter	Specification
Technology	Microwave Doppler Radar
Transmitter Frequency	24.125GHz
Transmitter Radiated Power	<20 dBm EIRP
Transmitter Power Density	≤5mW/cm
Maximum Mounting Height	3m
Tilt Angles	0°~90° vertical; -30°~+30° lateral
Detection Field (2.2m mounting)	4m(W)×2m(D)
Detection Mode	Motion detection
Minimum Detectable Speed	5cm/s (sensor axis)
Supply Voltage	12-24V AC ±10%; 12-24V DC +30% / -10%
Mains Frequency	50-60Hz
Power Consumption	≤2W(VA)
Output Mode	Switch tube output
Signal Output Time	1.5s hold
Max Contact Voltage	42V AC/DC
Max Contact Current	1A (resistive)
Max Switching Power	30W(DC) / 60VA(AC)
Working Temperature Range	-20℃ ~ +55℃
Degree of Protection	IP54
Norm Conformity	R&TTE 1999/5/EC; EMC 89/336/EEC
Material	ABS
Housing Color	Black/Silver
Dimensions (W×H×D)	120mm×80mm×50mm
Net Weight	0.215kg
Cable Length	2.2m

Installation & Adjustment Guide

The sensor's performance is closely related to correct installation and adjustment—simple operation with no professional tools required:

Mounting Requirements: Avoid vibration positions, neon lamp proximity and sensor occlusion; do not touch internal electronic parts during installation.
Sensitivity Adjustment: Rotate the sensitivity potentiometer gently and slowly; the sensitivity value determines the size of the detection field (adjust to 1/2 or higher for short detection distance).
Angle Adjustment: Planar antenna lateral angle = detection field position; vertical angle = detection field depth; set microwave module angle to ≥45° for optimal detection.
Status Check: LED flashes after power-on (normal standby); LED lights up continuously when a moving target is detected (detection trigger).

Troubleshooting Guide

Quick solutions for common operational issues:

Fault Phenomenon	Probable Causes	Corrective Action
Door does not open & LED no light	Sensor power off	Check wiring connection and power supply validity
Door opens/closes constantly	Sensor detects door vibration/movement; interference source in detection range	Fix the sensor firmly; increase tilt angle/reduce sensitivity; remove interference sources in the detection field
Detection distance is too close	Low sensitivity; microwave module angle <45°; sensor blocked	Adjust sensitivity potentiometer to 1/2 or higher; set module angle to ≥45°; remove occluding objects

Application Scenarios

The RD24-4S is a multi-scenario motion detection sensor with high adaptability, primarily applicable to:

Automatic Door Systems: Sliding doors, swing doors, glass induction doors (commercial buildings, shopping malls, office buildings)
Security & Monitoring: Perimeter security detection, indoor human motion induction (residential, factory, warehouse)
Industrial Automation: Conveyor belt motion detection, equipment start/stop induction (light industry production lines)
Intelligent Building: Smart lighting induction, air conditioning induction (public areas such as corridors and elevators)
